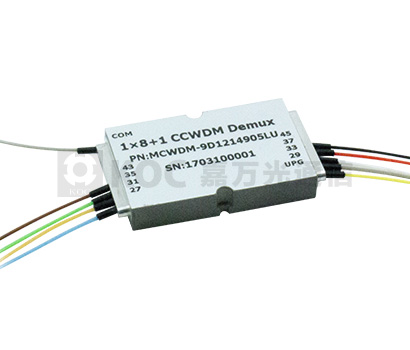

Mini CWDM Module

CWDM Module is based on Thin-Film-Filter and Micro-Optics, this product features wide pass band, low insertion loss and high channel isolation, high stability and reliability.

Specification Download

@Email to Sales

Features

· Low insertion loss & high isolation

· Compact size

· Optical pa h epoxy free

· Telcordia compliant

Applications

· CWDM system

· Metro/Access networks

· CATV network

Specifications

Parameter		Specification		Unit
Channel Center wave- length		1460~1610	1461~1611	nm
Channel Spacing		20		nm
Channel ClearPassband		ITU±035		nm
Number of Channels		4	8
Insertion Loss	Max	1	1.2	dB
Passband Ripple	Max	0.5	0.5	dB
Adjacent Channel Isola- tion	Min	30	30	dB
Non-adjacent Channel Isolation	Min	15	15	dB
Return Loss	Min	45	45	dB
Directivity	Min	45	45	dB
Polarization Dependent Loss	Max	0.2	0.2	dB
Operating Temperature Range		0~+70		°C
Storage Temperature Range		-40~+85		°C
Maximum Power Handling		300		mW
Package Dimension (L * Ø)		46.5308		mm

Order Information

Mini- CWDM	Number of Channels	Starting Channel	Fiber Type	Connector Type
	04: 4 channels	1471: ch-1471	1: 900μm fiber	0: Without connector
	08: 8 channels	1470: ch-1470	2: 250m bare fiber	1: FC/PC 2: FC/UPC 3: FC/APC
		more		4: SC/PC S:SC/UPC 6:SC/ APC
				7: ST 8: LC 9: MU X: Cus- tomized
