Waterproof Cable

Specification Download

@Email to Sales

Features

· Accurate fiber excess length ensures good performance.

· Good performance in crush resistance and causticity resistance.

· Strong steel wire as strength member with good performance of tensile strength.

· Suitable for execrable environment, good grounding performance.

· Easy to operate, simple and reliable.

Temperature range -20°C - +70°C

Applications

· Industrial, military, waterproof cables, redeployable systems.

· Connected to connectors of various models.

· Interconnect main cable to optic receivers.

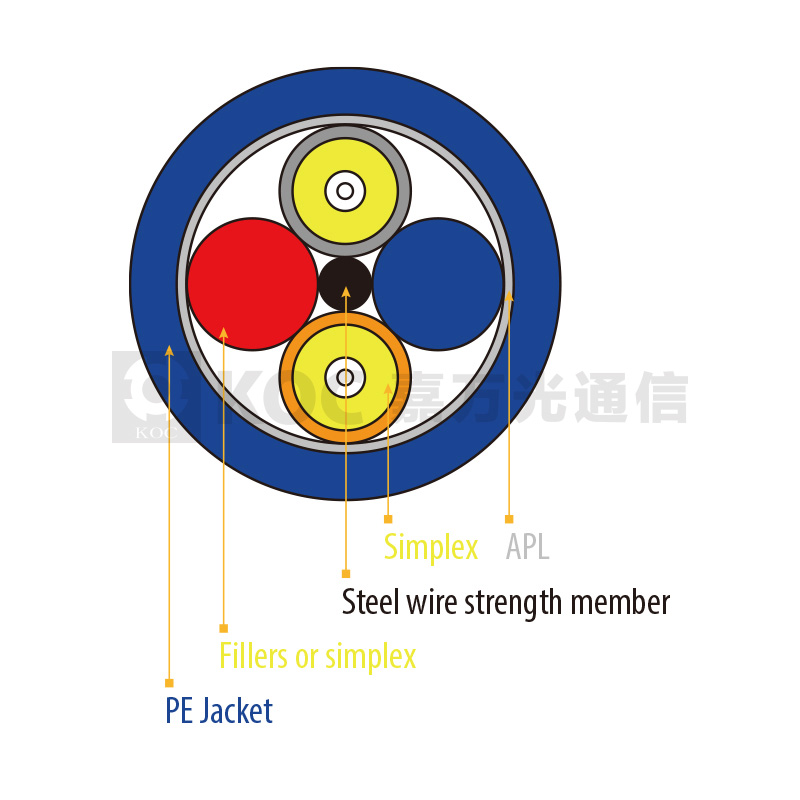

Description

· One or more single-core cables SZ stranded around the metallic central strength member.

· Longitudinal aluminum polyethylene laminate(APL) is applied around the core as additional water barrier.

· Polyethylene(PE) jacket.

Specifications

Fiber Count	Outer Diameter (mm)	Nominal Weight (kg/km)	Max. Tensile(N) Long Term Short Term		Min.bend Radius(mm) Dynamic Static
Waterproof Cable
Below 4 Fibers	9.8	83	200	600	20D	10D
	11.8	110	300	1000	20D	10D

No Previous Next
