Armoured Loose Tube Cable (Central Bundled, Outdoor) GYXTW

Specification Download

Features

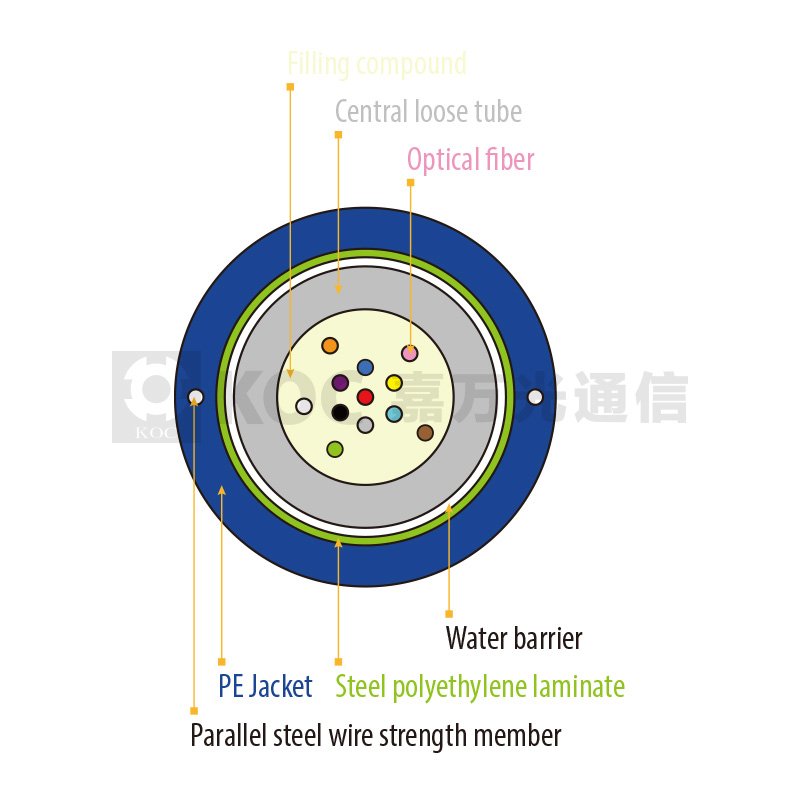

· The two parallel round steel wires enhance tensile strength, tension-resistance and crush resistance.

· Good mechanical performance, jacket with good ultra violet resistant property.
· Small outer diameter, lightweight, tight structure, excellent bending property and suitable to installation and operation.

Applications Long distance and Local Area Network(LAN) communication

Laying method Conduit, Aerial

Temperature range -40°C - +70°C

Specifications

Fiber Count	Outer Diameter (mm)	Nominal Weight (kg/km)	Max. Tensile(N) Long Term Short Term		Min.bend Radius(mm) Dynamic Static		Max. Crush Resistance
Armoured Loose Tube Cable (Central Bundled, Outdoor) GYXTW
2	8.3	66	600	1500	20D	10D	3000
4	8.3	66	600	1500	20D	10D	3000
6	8.3	66	600	1500	20D	10D	3000
8	8.3	66	600	1500	20D	10D	3000
10	9.0	82	600	1500	20D	10D	3000
12	9.0	82	600	1500	20D	10D	3000
