Multi-core armored optical fiber cables

Specification Download

@Email to Sales

Features

· Good mechanical and environmental characteristics

· Soft, Flexible, Stable, easy to splice, rat bite protection, Apply to connections of long distance, outdoor, building cabling, combination cabling of fiber optic and electronic

· Flame retardant characteristics meet the requirements of relevant standards

· Improve existing function based on customers’various requirements

Specifications

Cable Type	Cable diameter (mm)	Cable weight (Kg/KM)	Temsile N		Bend radius		Crush (N/100mm)
Cable Type	Cable diameter (mm)	Cable weight (Kg/KM)	short term	long term	dynamic	static	Crush (N/100mm)

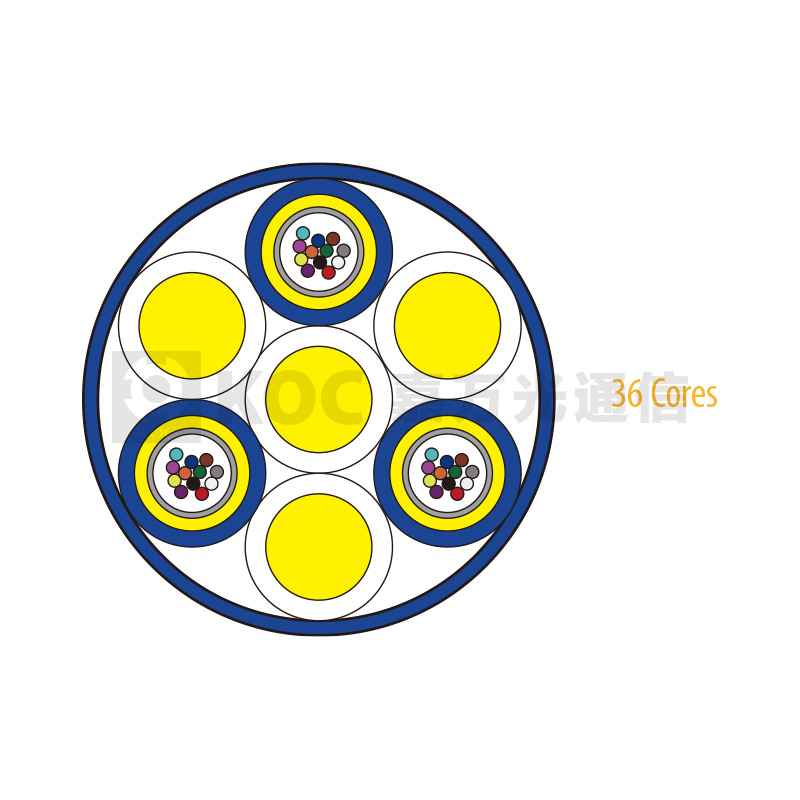

10.5GJSJV-36S	Φ10.5±0.2	99.5	1500	800	200	105	3000

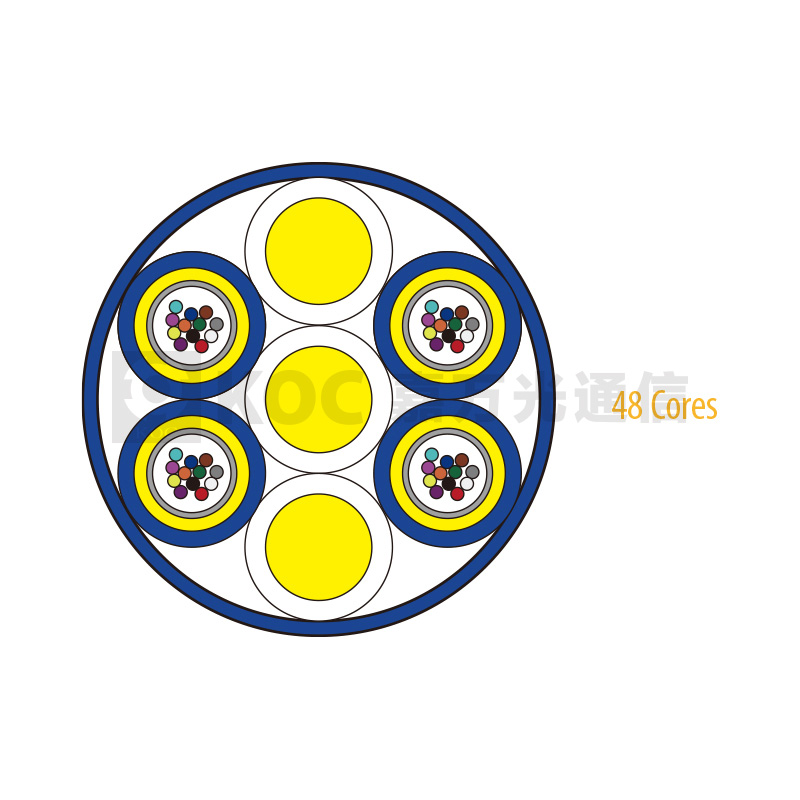

10.5GJSJV-48S	Φ10.5±0.2	103.8	1500	800	200	105	3000

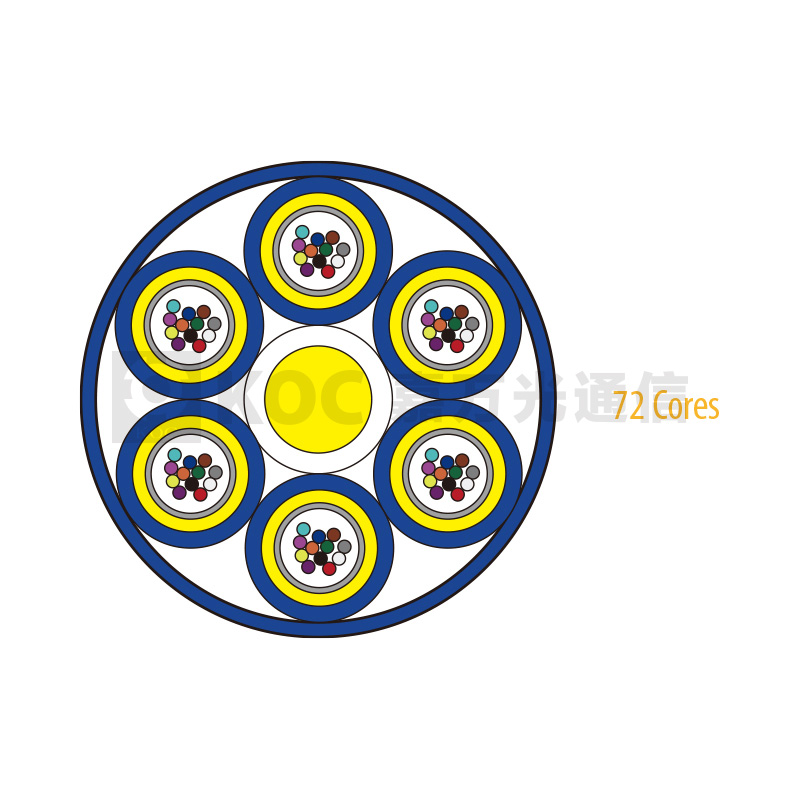

10.5GJSJV-72S	Φ10.5±0.2	112.5	1500	800	200	105	3000

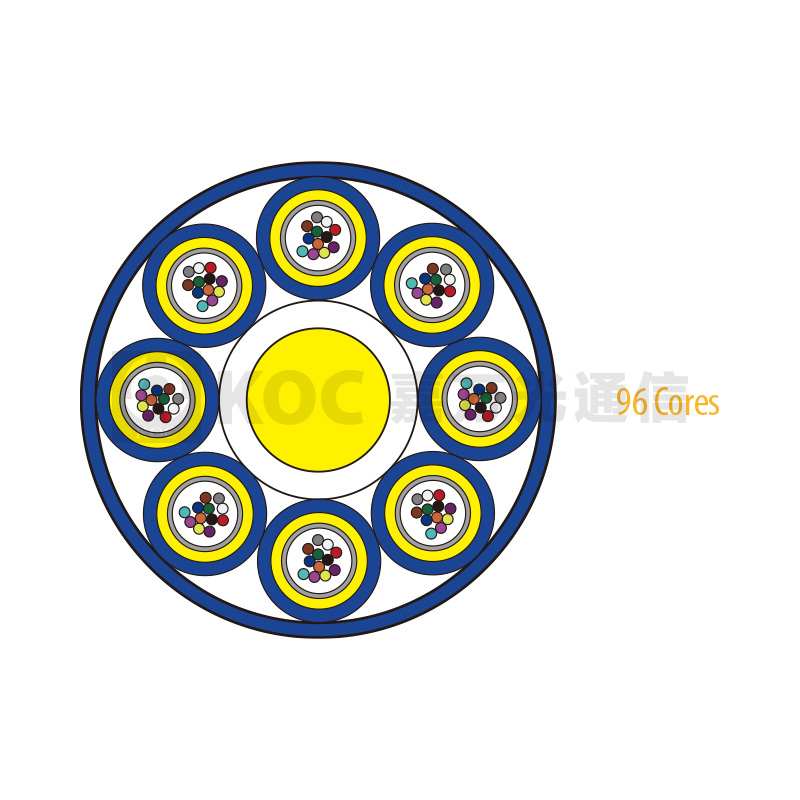

13.5GJSJV-96S	Φ13.5±0.3	169.0	1800	900	270	135	3000

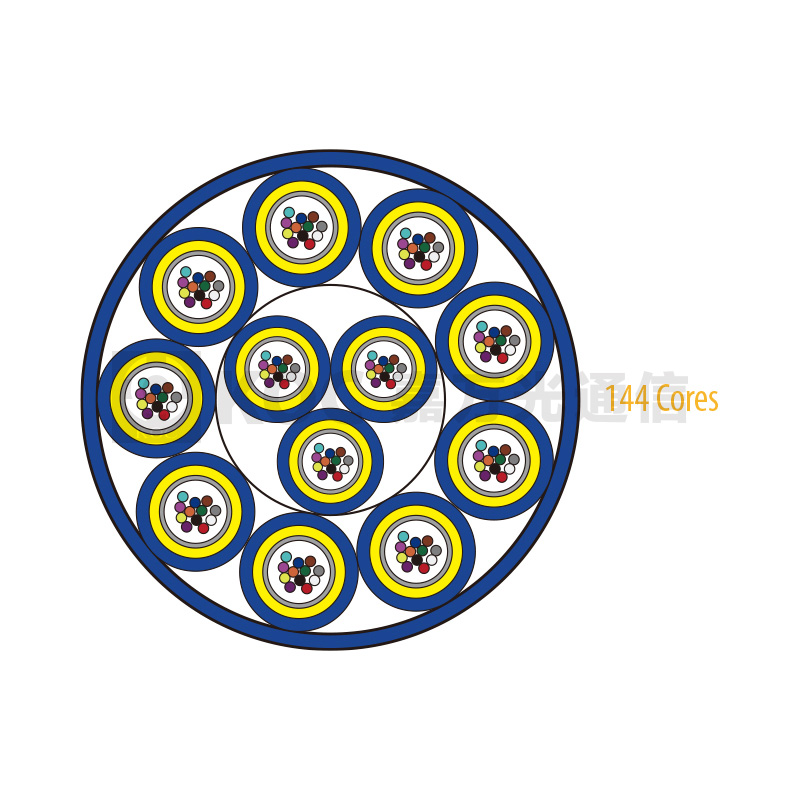

14.5GJSJV-144S	Φ14.5±0.3	204.0	1500	800	290	145	3000
