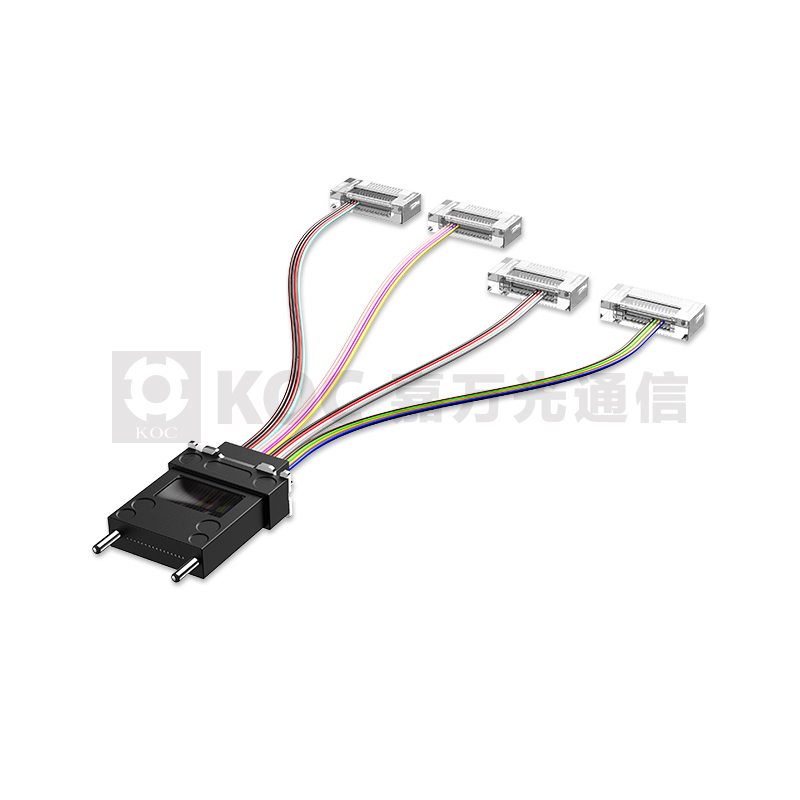

MT - 4*Jumper Assembly

Passive optical interconnect jumpers can be deployed in QSFP, QSFP+, QSFP28, QSFP-DD, OSFP, CXP, CFP, CDFP and any parallel optical transceiver modules, supporting various network types, including Ethernet optical network, Infiniband optical network, and Fiber Channel network.

Specification Download

@Email to Sales

Features

GR-1435, GR-1221 compliant

Transmission mode: Multi-channel serial and parallel transmission mode

High accuracy

Support: 200G(8x25G), 400G(8X50G)

Coupling Mode

Passive coupling with guide pins and 0, 8, 10 degrees as customer designed

Active coupling with light source and 0~45 degrees

Passive coupling with guide pins and 90 degrees

IL/RL Specifications

MT IL ≤0.60 dB typical 0.20 dB MT RL ≥20 dB

Environment Conditions

-40°C~+85°C

Item	Specification
Connector A	MT Ferrule with guide pin
Connector B	Customized Jumper/Lens, Usconect Prizm/Lensed MT
Fiber shape	Ribbon
Fiber count	2F/4F/8F/12F/16F/24F
Fiber type	OM3, OM4, OM5;
Length	20~50mm, Customized length available
Length tolerance	±0.30 ~ ±0.50mm
