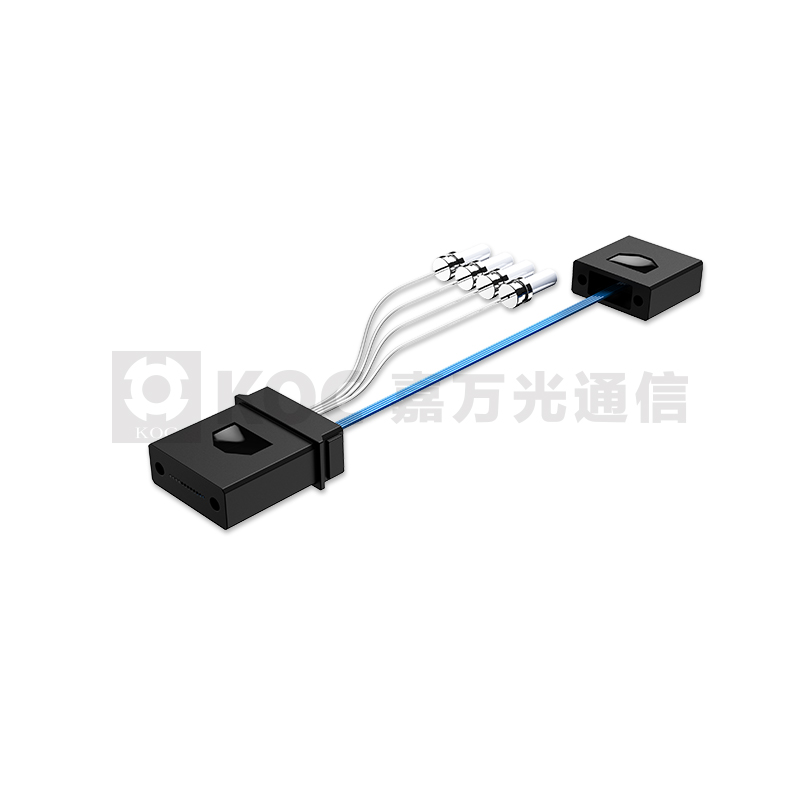

MT - SUS Assembly

Passive optical interconnect jumpers can be deployed in QSFP, QSFP+, QSFP28, 100G PSMA, QSFP-DD, OSFP, CXP, CFP, CDFP and any parallel optical transceiver modules, supporting various network types, including Ethernet optical network, Infiniband optical network, and Fiber Channel network.

Specification Download

@Email to Sales

Features

GR-1435, GR-1221 compliant

Transmission mode: Multi-channel serial and parallel transmission mode

High accuracy

Support: 40G(4x10G), 100G(4x25G)

Coupling Mode

Passive coupling with guide pins and 0, 8 degrees

IL/RL Specifications

MT IL ≤0.60 dB typical 0.20 dB MT RL ≥20 dB

Environment Conditions

-40°C~+85°C

Item	Specification
Connector A	MT Ferrule with guide pin
Connector B	MT&SUS or FA&SUS, Customized size/angle available for FA
Fiber shape	Ribbon
Fiber count	8F
Fiber type	OS1, OS2;
Length	20~50mm, Customized length available
Length tolerance	+0.3/-0mm ~ +0.5/-0mm
