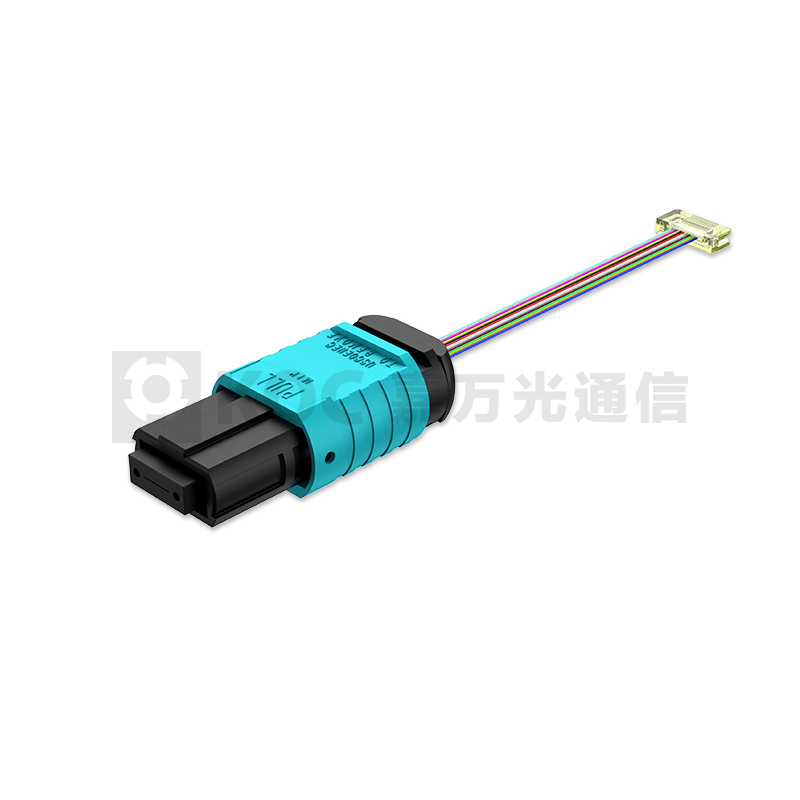

MPO - Jumper Assembly

Passive optical interconnect jumper could connect to optical modules, optical FPGA and Silicon photonic chip installed on PCB, and also it could connect to any parallel optical transceiver modules, supporting various network types, including Ethernet network, Infiniband network and Fiber Channel network, the application equipment includes Switches, Servers, Storages, HPC, and, etc.

Specification Download

@Email to Sales

Features

GR-1435, GR-1221 compliant

Transmission mode: Multi-channel serial and parallel transmission mode

High accuracy

Support: 40G(4x10G), 100G(4x25G)

Coupling Mode

Passive coupling with guide pins and 0, 8 degrees

Active coupling with light source and 0~ 45 degrees

Passive coupling with guide pins and 90 degrees

IL/RL Specifications

MT IL ≤0.60 dB typical 0.20 dB MT RL ≥20 dB

Environment Conditions

-40°C~+85°C

Item	Specification
Connector A	MPO
Connector B	Customized Jumper/Lens
Fiber shape	Ribbon
Fiber count	12F
Fiber type	OM2,OM3,OM4;
Length	50~80mm, Customized length available
Length tolerance	±0.5mm
