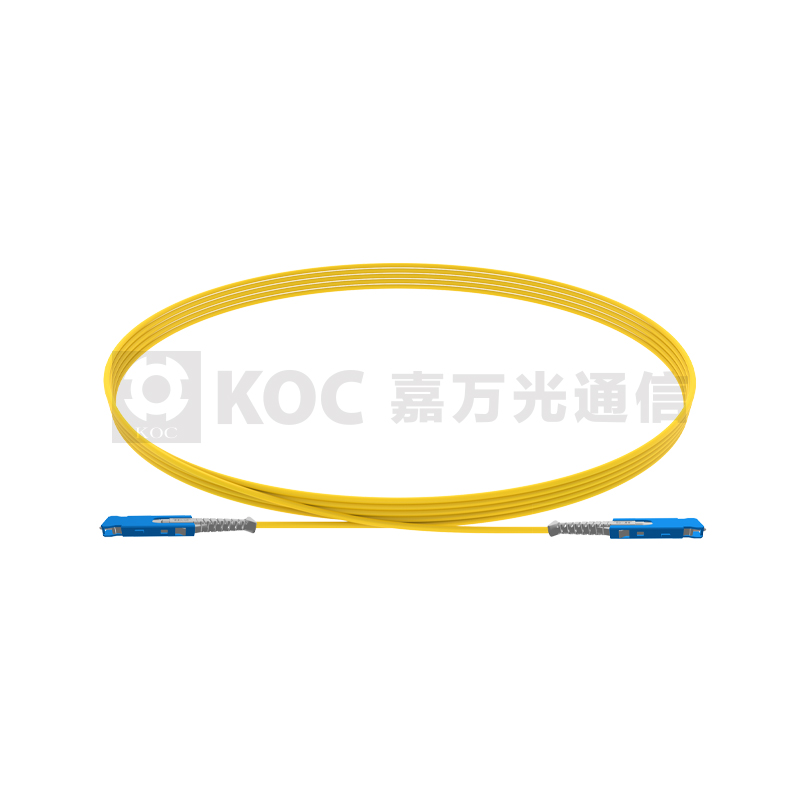

SN Grade B Patchcord

The SN patchcords provide individual and independent duplex fiber breakout at a quad style transceiver (QSFP, QSFP-DD, OSFP) as a more efficient, increased reliability. This is a new duplex optical fiber connecting designed for Data Center 400G optimization.And it offers the ability to add more room for cable management as well as better airflow within a rack. The cable type and the lengh of fiber patchcord can be decided by customers. Our product conforms to Telcordia GR-326&IEC61753-1 Grade B.

Specification Download

@Email to Sales

Features

• Accepts 1.6 mm and 2.0 mm cable

• Combines two 1.25 mm ceramic ferrules

• Grade B IEC61753-1 Random Mating

• Low insertion loss(Grade B) and back reflection loss

• ROHS compliant

• GR326 compliant

Application

• Gigabit Ethernet

• Data Center

• Multimedia

• Quantum computing

• Telecommunication networks

• 400G

Item	Single mode	Multimode
Insertion Loss	Typical ≤0.12dB, Maximum≤0.25dB	Typical ≤0.12dB, Maximum≤0.25dB
Return Loss	≥50 dB (PC) ; ≥60 dB (APC)	≥30 dB (PC)
Durability	<0.20 dB typical change, 1000 matings	<0.20 dB typical change, 1000 matings
Operating Temperature	-40 to + 85°C	-40 to + 85°C

Availability

• 1.6/2.0mm cable type are available.

• OS2/OM3/OM4/OM5 fiber type are available.

• PVC/LSZH/OFNR/OFNP cable jacket type are available.

• PC/APC are available

Cable diameter	Cable jacket type	Fiber type	Polishing type
1.6mm	PVC	OS2	PC
2.0mm	LSZH	OM3	APC
	OFNR	OM4
	OFNP	OM5
