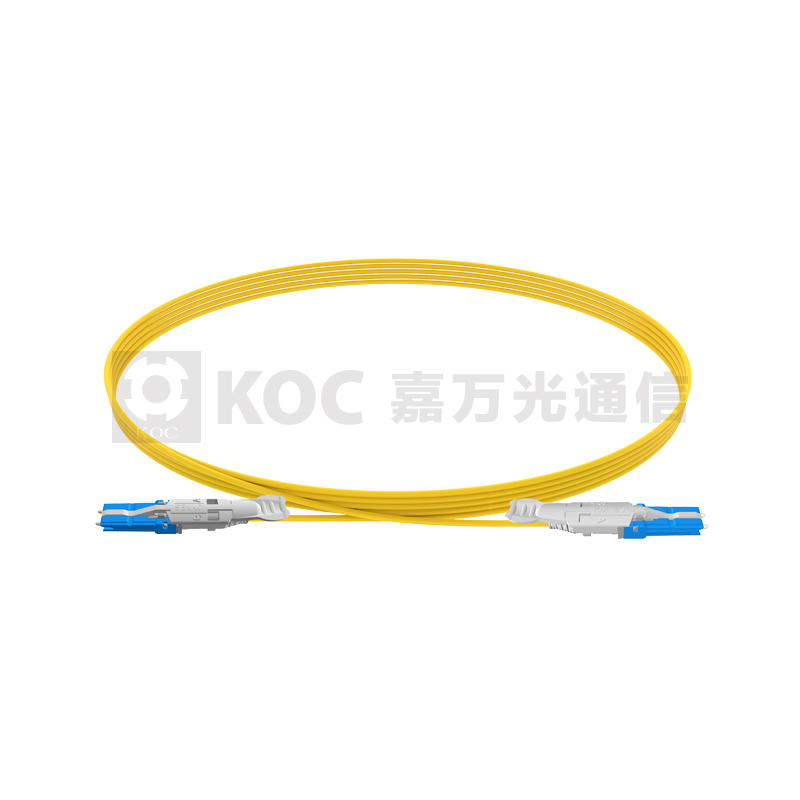

CS Grade B Patchcord

The CS patchcord can double the density in patch panels compared to LC duplex. It offers the ability to add more room for cable management as well as better airflow within a rack. The unique push-pull tab allows for better usability in high-density applications. The cable type and the lengh of fiber patchcord can be decided by customers. Our product conforms to Telcordia GR-326&IEC61753-1 Grade B.

Specification Download

@Email to Sales

Features

• 40% size reduction over LC Duplex

• Grade B IEC61753-1 Random Mating

• Low insertion loss(Grade B) and back reflection loss

• ROHS compliant

• GR326 compliant

Application

• Gigabit Ethernet

• Data Center

• Multimedia

• Quantum computing

• Telecommunication networks

Item	Single mode	Multimode
Insertion Loss	Typical ≤0.12dB, Maximum≤0.25dB	Typical ≤0.12dB, Maximum≤0.25dB
Return Loss	≥50 dB (PC) ; ≥60 dB (APC)	≥30 dB (PC)
Durability	<0.20 dB typical change, 1000 matings	<0.20 dB typical change, 1000 matings
Operating Temperature	-40 to + 85°C	-40 to + 85°C

Availability

• 2.0/3.0mm cable type are available.

• OS2/OM3/OM4/OM5 fiber type are available.

• PVC/LSZH/OFNR/OFNP cable jacket type are available.

• PC/APC are available

Cable diameter	Cable jacket type	Fiber type	Polishing type
2.0mm	PVC	OS2	PC
3.0mm	LSZH	OM3	APC
	OFNR	OM4
	OFNP	OM5
