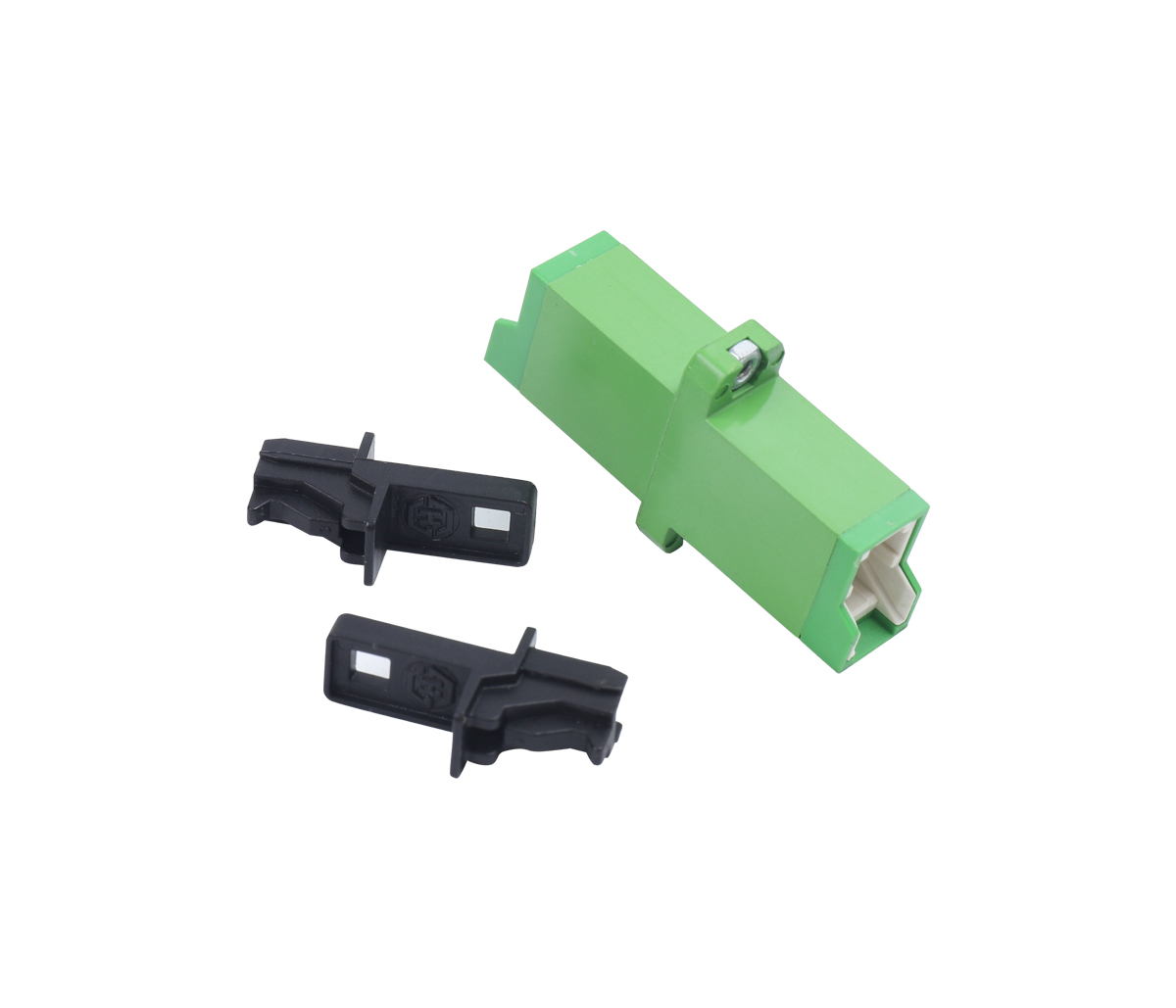

E2000 Simplex Adapter

The E2000 Adapter features injection-molded PBT housing, rated to the UL94V-01 Flammability Index.Spri ng-Ioaded shutters protects against dust and scratching. A high quality split ceramic sleeve ensures high pe rformance over 1000 mating cycles.

The adapter may be ordered with color coded housing and frames Me chanical coding is available upon request

Specification Download

@Email to Sales

Features

• Excellent handling at high packing density

• Bulkhead adaptor

• Self-retentive mechanism enables

Applications

• Fiber optic transmission system

• CATV networks

• LAN

• Testing/Measurement Instruments

• Fiber distribution frame,Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets

Specifications

Item	PC	APC
Insertion Loss	≤0.2dB
Return Loss	≤50dB	≤60dB
Mating Durability (1000Cycles)	≤0.2dB
Temperature Stability	-40 ~ 85°C

Availability

Colors

Blue/Green/Beige
