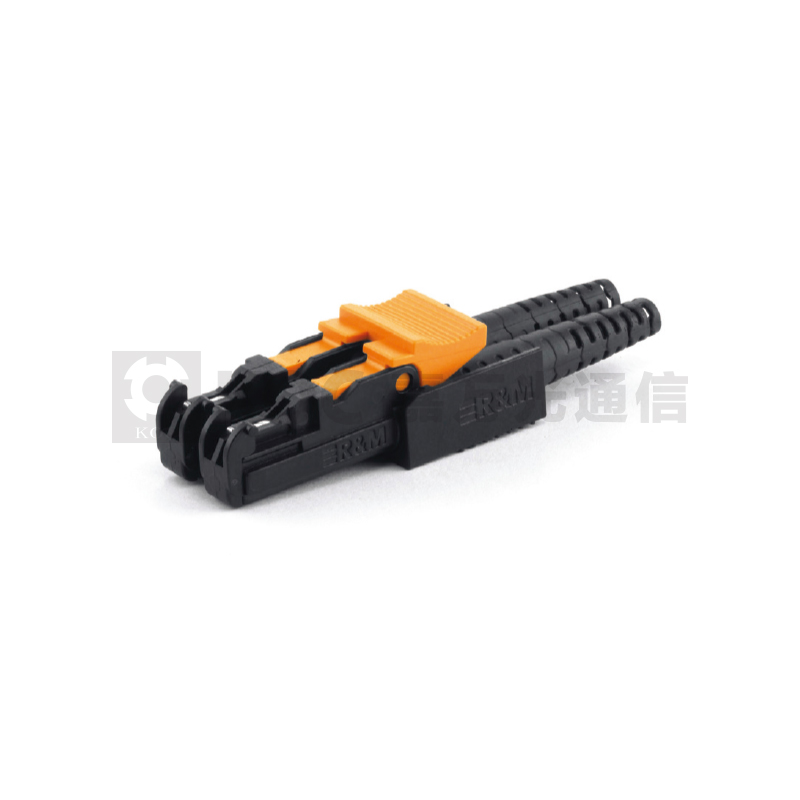

Features
• The connector housing fully protects the ferrule against dust, dirt and scratches
• Spring-loaded metal shutter
• Ferrule end surface predomed
• Bayonet style housing for easy termination
• Good insertion loss and back reflection loss
•ROHS compliant
•TIA604-16&IEC61754-15 compliant
• IL are available.
Application
• Instrumentation
• Data processing networks
• Premise installations
• Local Area Networks (LANs)
Standards
All components of/and the final product are designed and tested to conform the requirements of IEC 60874, Bellcore/Telcordia GR-326, EIA/TIA 604-16, IEC61754-15,EIA/TIA 568, IEC61300-2,IEC61300-3,IEC61753-1, EIA/TIA455,IEC61755-2.
| Single mode | Multimode |
| Insertion Loss | Standard Loss:≤0.30dB Grade B Low loss:Typical ≤0.12dB, Maximum≤0.25dB | Standard Loss:≤0.30dB Grade B Low loss:Typical ≤0.12dB, Maximum≤0.25dB |
| Return Loss | PC≥50 dB,APC≥60 dB | PC≥30 dB |
| Durability | <0.20 dB typical change, 1000 matings | <0.20 dB typical change, 1000 matings |
| Operating Temperature | -40 to + 85°C | -40 to + 85°C |

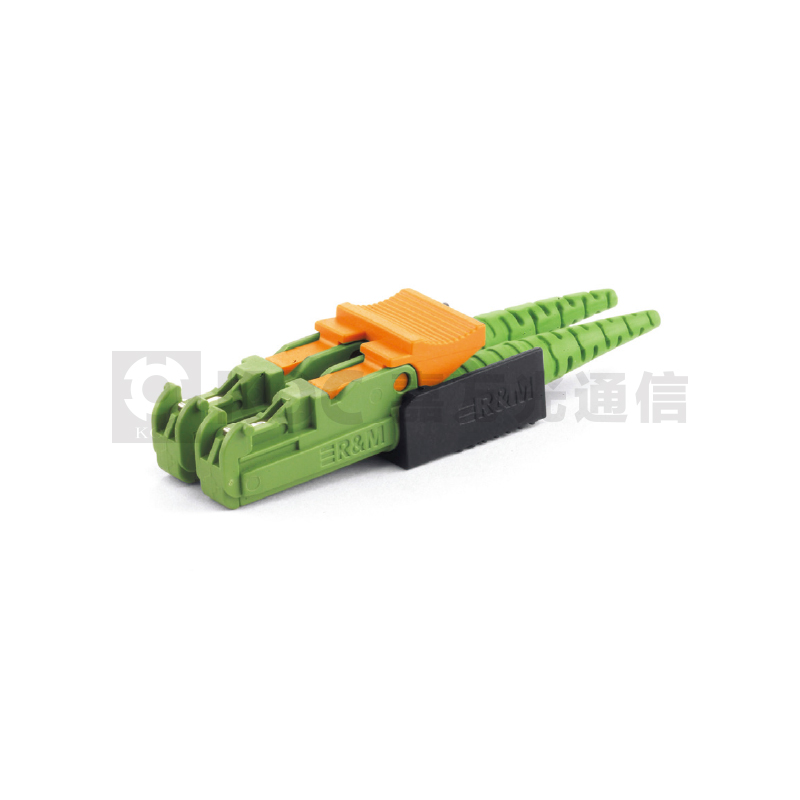

Availability
• The connector can be supplied as a pre-assembled connector or as connector kits.
• APC or PC ferrule are available.
• IL are available.
| IL type | Ferrule Style | Housing Colors | Lever Codes | Boot Type | Boot Colors |
| Standard loss | PC | SM-PC-Blue | Blue | 1.2mm boot | Blue |
| Grade B low loss | APC | SM-APC-Green | Green | 2.0mm boot | Green |
|
| MM-PC-Beige、Black | White | 3.0mm boot | Beige |
|
|
| Black |
| Black |
|
|
| Orange |
| Yellow |
|
|
| Yellow |
| White |
