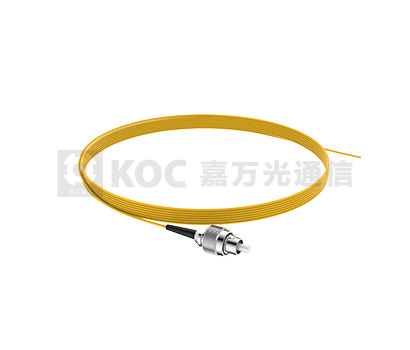

0.9mm FC Optical Fiber Pigtail

Pigtail is used to connect optical fiber and optical fiber coupler, It includes connector and an optical fiber. it is another form of patch cord, and a connector which similar to half of patch cord. Used in the ending part of optical communication, and connected to the optical devices. Or the connection transmission equipment and ODF frame, etc

Specification Download

@Email to Sales

Features

• 1/2/4/8/12/24 Fiber counts are available

• OS2/OM1/OM2/OM3/OM4/OM5 Fiber types are available

• 900um LSZH/PVC/Hytrel Jacket types are available

• ROHS compliant

•IEC61300/IEC61753/TIA455/IEC60793/IEC60794/IEC61755 compliant

Applications

• CATV

• Telecommunication networks

• Active device termination

• Video

• Local Area Networks (LANs)

• Data processing networks

• Test equipment

• Premise installations

• Wide Area Networks (WANs)

Item	Single mode	Multimode
Insertion Loss	≤0.3dB	≤0.3dB
Return Loss	≥50dB(PC), ≥60dB(APC)	≥30dB
Repeatability	≤0.2	≤0.2
Durability	≤0.2dB typical change, 500 matings	≤0.2dB typical change, 500 matings
Interchangeability	≤0.2dB	≤0.2dB
Tensile strength	>10N	>10N
Operating Temperature	-20°C ~ 70°C	-20°C ~ 70°C

Availability

Fiber Counts	Cable jacket Type	Cable Buffer Type	Cable jacket Colors	Fiber Type	Length
1-4	PVC	Tight	Blue/Orange/Green/Brown/ Grey/White/Red/Black/ Yellow/Violet/Rose/Aqua	G652D/G657A1/G657A2/ G657B2/G657B3/OM1/ OM2/OM3/OM4/OM5	Customized
8	LSZH	Semi-tight
12	Riser	Loose
24	Plenum
	Hytrel
