Features
· Good mechanical and environmental characteristics.
· Flame retardant characteristics meet the requirements of relevant standards.
· The mechanical characteristics meet the requirements of relevant standards.
· Soft, flexible, easy to splice,and with big capacity data transmission.
· Meet various requirements of market and clients.
Application
· Used in indoor cabling,especially used as breakout cable.
· Used as access building cable.
· Used as interconnect lines of equipments,and used in optical connections in optical communication equipment rooms and distribution frames.
· Used as pigtails and patch cords.
Options
· Fiber Type: G.652, G.655, G.657 single-mode fiber, A1a or A1b mulit-mode fiber, or other types of fiber.
· Jacket Material: Polyvinylchloride(PVC), Low smoke zero halogen(LSZH), Thermoplatic polyurethane(TPU), or other contracted material.
· Fiber Count: Total number of fibers in the cable.
· Jacket color: (including color of fiber)meets the requirements of relevant standards,or other contracted color.
· Cable Dimension: The nominal cable dimension or other contracted dimension.
· Delivery Length: 1KM or 2KM or other contracted length.
· Other Requirements: Other contracted special requests.
Specifications
| Fiber Cable Count | Dimensio
n(mm) | Cable Weigh
t(kg/km) | Tensile(N) | Crush(N/100mm) | Min.bend Radius(mm) | Range of Long
Temperature(°C) |
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static |

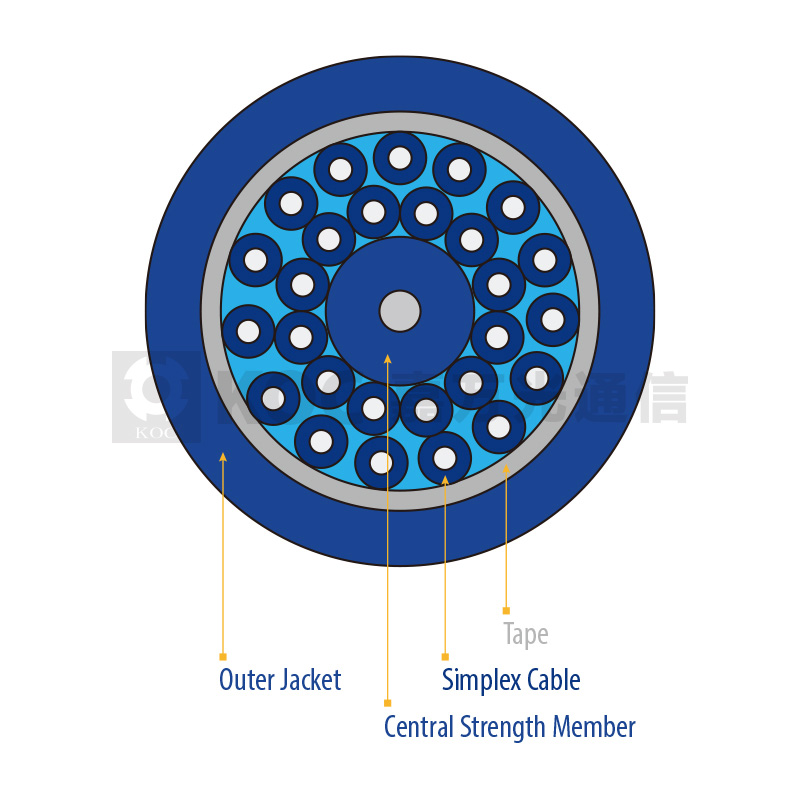

Multi-fiber Breakout Indoor Cable II |
16 | 12.0 | 120 | 500 | 1500 | 300 | 1000 | 20D | 10D |
|
24 | 15.0 | 178 | 800 | 2200 | 300 | 1000 | 20D | 10D | -20°C ~ +60°C |
36 | 17.5 | 200 | 1000 | 3000 | 300 | 1000 | 20D | 10D |
|
48 | 20.0 | 247 | 1500 | 4000 | 300 | 1000 | 20D | 10D |
|
Note:1 D is outer diameter of the round tale
Note:2 The cable dimension and weight are in accordance with the tight-buffered fiber of 0.9mm outer diameter
Note:3 Theminimum bend radius(static)is 5D when G.657fiber is used
