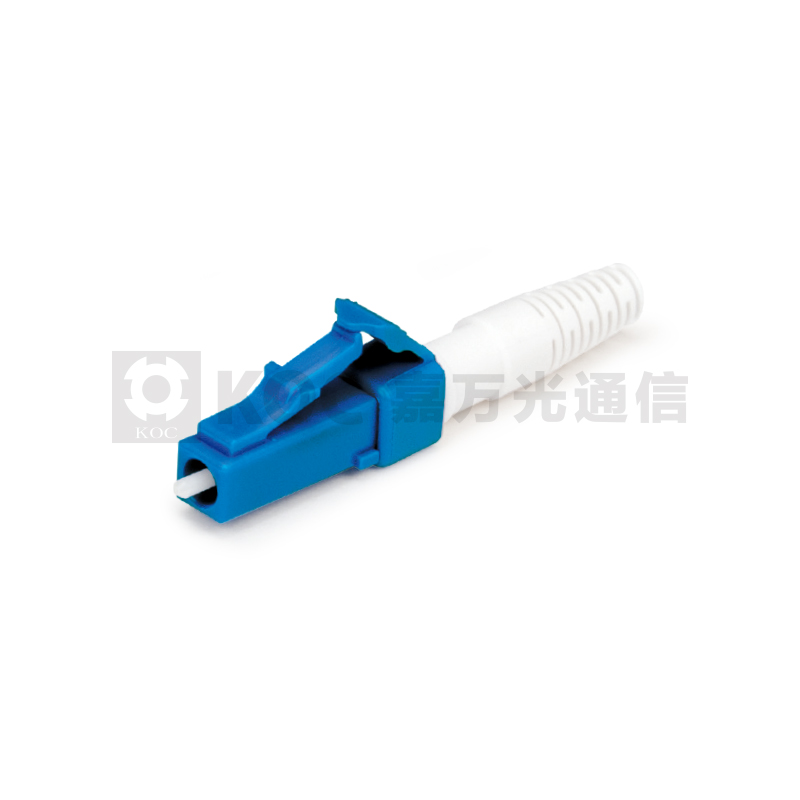

LC Grade B Connector

The Grade B LC connectors are according to IEC 61753-1, usually are used for patchcord&pigtail. And the connectors have many types can be chosed, for example: APC or UPC ferrule、blue or green hosuing、standard or specifical boot ...

Specification Download

@Email to Sales

Features

• High precision alignment

• Precision anti-rotation key and corrosion resistant body

• Low insertion loss(Grade B) and back reflection loss

• ROHS compliant

• TIA604-10&IEC61754-20 compliant

Application

• Gigabit Ethernet

• Video

• Multimedia

• Active device termination

• Premise installations

• Telecommunication networks

Standards

All components of/and the final product are designed and tested to conform the requirements of IEC 60874, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, IEC61754-4,EIA/TIA 568, IEC61300-2,IEC61300-3,IEC61753-1, EIA/TIA455,IEC61755-2.

	Single mode	Multimode
Insertion Loss	Typical ≤0.12dB, Maximum≤0.25dB	Typical ≤0.12dB, Maximum≤0.25dB
Return Loss	≥50 dB (PC) ; ≥60 dB (APC)	≥30 dB (PC)
Durability	<0.20 dB typical change, 1000 matings	<0.20 dB typical change, 1000 matings
Operating Temperature	-40 to + 85°C	-40 to + 85°C
Ferrule Hole Sizes	125.0+0.7/-0μm, Concentricity: ≤0.5μm	125.0+1/-0μm, Concentricity: ≤1.0μm

Availability

• 0.9/2.0/3.0mm LC connectors type are available.

• Simple&Duplex type are available.

• LC/PC and LC/APC are available.

Type	Housing Colors	Boot Type	Boot Colors
Simplex	SM-PC(Blue)	0.9mm boot	Blue
Duplex	SM-APC(Green)	2.0 mm Boot	Green
	MM-PC(Beige/Aqua/Magenta)	3.0 mm Boot	White
			Beige
			Aqua
			red
			Magenta
