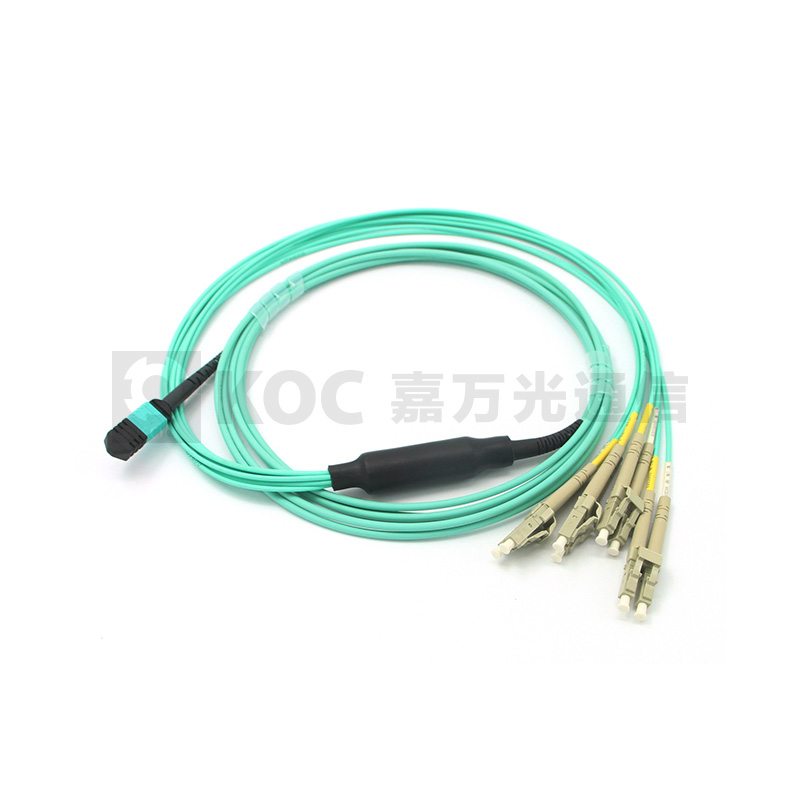

MTP/MPO - LC Fan-out Patch Cord

The fan-out is applied to connect 12-core MTP / MPO connector to the LC connectors on the trunk cable. Bangun provides both standard and customized branch lengths. When the network equipment is close to MTP patch panel frames, the length of fan-out patch cords are minimized. For the hardware and equipment in the same cabinet, the longer patch cords can provide flexibility at any location, and the branch cables can be winded into the vertical cable organizer.

Specification Download

@Email to Sales

Features

· Smooth upgrading to next generation data center for 40GbE and 100GbE

· Outer jacket material option: PVC, LSZH and other selected materials

· Fiber type (OS2/OM3/OM4/OM5) are available

· Cable flammability rating: OFNR, OFNP, LSZH

Specifications

Item	Single mode		Multimode
Item	MTP/MPO(APC)	LC(PC)	MTP/MPO(PC)	LC(PC)
Insertion Loss	Low loss ≤0.35 dB	≤0.3 dB	Low loss ≤0.35 dB	≤0.3 dB
Insertion Loss	Standard Loss ≤ 0.7 dB	/	Standard Loss ≤0.5 dB	/
Return Loss	≥60 dB	≥50 dB	≥30 dB	≥30 dB
Durability	<0.2typical change, 500 matings
Operating Temperature	-20 to +70°C
