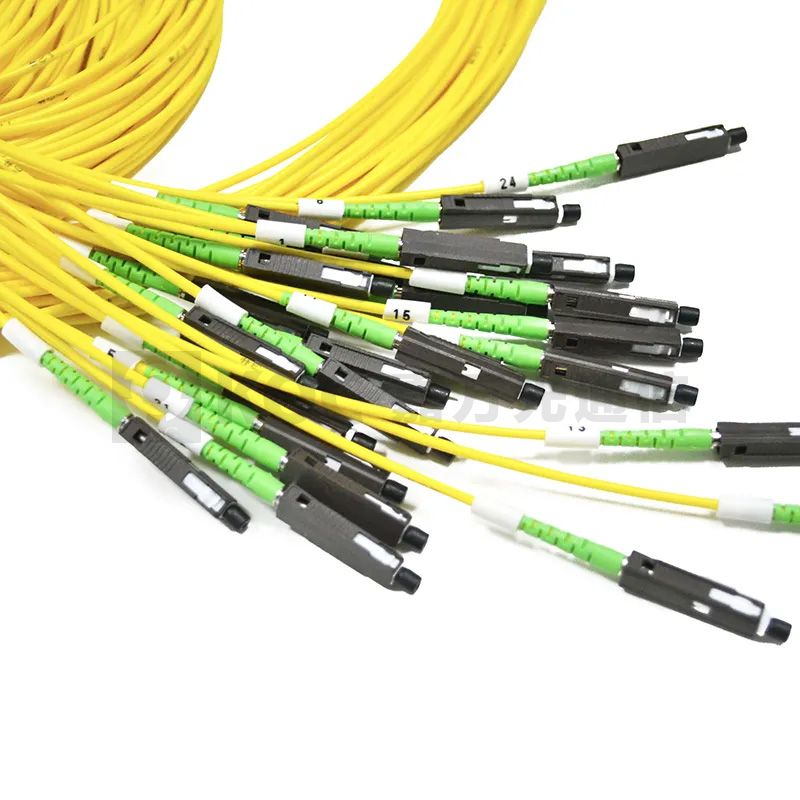

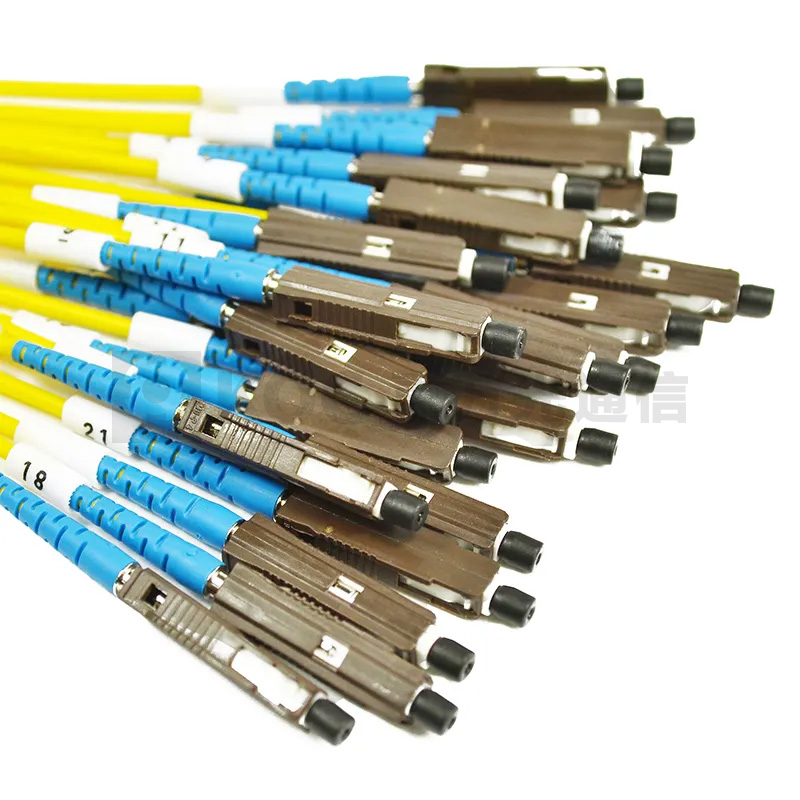

2.0mm MU Optic Patch Cord

Optical patch cord, which used to implement the optical path active connection, and composed of optical fiber connector and fiber cable. It makes two fiber surface precision docking, so that the optical output power maximize the coupling to the receiving optical fiber, and minimize insertion loss. Optical patch cord is use for connect equipment and Optical Fiber Cabling Link,and thick protective coat, commonly use for connection between optical transceiver and the terminal box.

Specification Download

@Email to Sales

Features

• OS2/OM1/OM2/OM3/OM4/OM5 Fiber types are available

• Good exchangeability

• Good Durability

• High temperature stability

• Jacket types are available

• ROHS compliant

• IEC61300/IEC61753/TIA455/IEC60793/IEC60794/IEC61755 compliant

Applications

• Local Area Networks (LANs)

• Data processing networks

• Instrument

• Premise installations

Item	Single mode	Multimode
Insertion Loss	≤0.3dB	≤0.3dB
Return Loss	≥50dB(PC), ≥60dB(APC)	≥30dB
Repeatability	≤0.2	≤0.2
Durability	≤0.2dB typical change, 500 matings	≤0.2dB typical change, 500 matings
Interchangeability	≤0.2dB	≤0.2dB
Tensile strength	>70N	>70N
Operating Temperature	-20°C ~ 70°C	-20°C ~ 70°C

Availability

Type	Simplex/Duplex	Cable jacket Type	Cable jacket Colors	Fiber Type	Length
Patchcord - Both end with connectors	Simplex - 1F	PVC	SM - Yellow	G652D/G657A1/G657A2/ G657B2/G657B3/OM1/ OM2/OM3/OM4/OM5	Customized
Pigtail - One end with connectors	Duplex - 2F	LSZH	OM1 - Orange
		Riser	OM3 - Aqua
		Plenum	OM4 - Magenta
