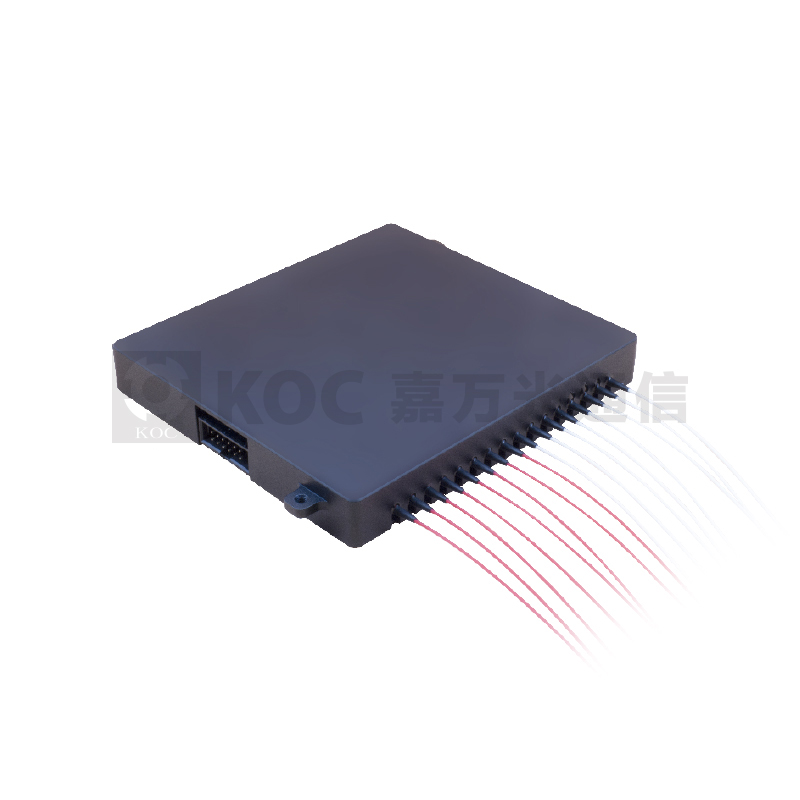

8-Channel MEMS VOA Array

8-Channel MEMS VOA Array is a VOA Module based on MEMS technology, featuring compacting design, simple construction, and excellent optical performance. The VOA Array is applied to the dynamic fiber optical modules, subsystems and networks.

Specification Download

@Email to Sales

Features

· Low insertion loss

· Low polarization dependent loss

· Fast response - Low power consumption

· Compact packaged size

· Customized design available on request

Applications

· Dynamic gain equalization in DWDM systems

· Optical network power management

· MUX/DeMUX module

· OADM node

· Power equalization in VMUX

· Instrumentation

Specifications

Parameter	Unit			Specification
Configuration				Bright	Dark
Wavelength Range	nm			C band 1525 - 1570	L band 1570 - 1610
Attenuation Range	dB			25/30/40	25/30/40
Return Loss	dB			45	45
Insertion Loss	dB/ V			0.8	0.8
Polarization Dependent Loss	0dB			0.1	0.1
	0dB ~ 10dB			0.4	0.4
	10dB ~ 20dB			0.8	0.8
Flat-ness	Broad Application	Band	0dB	0.2	0.2
			0-10dB	0.6	0.6
			10-20dB	1.5	1.5
	Narrow Application		0dB	0.2	0.2
			0-10dB	0.2	0.2
			10-20dB	0.4	0.4
Response Time	ms			5	5
Optical Power Handing (per clwme1)	mW/ch			500	500
Dimension	mm			60x50x11 (LxWxH)
Fiber Type				Corning SMF-28(9/125µm)
Fiber Marking				Input port: Red / Output port: Clear
Operating Temperature	°C			-5~70
Storage Temperature	°C			-40~85
Power Consumption	mW			10
