FEATURES
- Small / Compact Housing Design
- QSFP Available
- RoHS Compliant
- Data Center Infrastructure
- Storage Area Network and Fiber Channel
- Various 40G and 100Gbps Protocols
APPLICATIONS
- High Stability and High Durability
- Compact Housing Dimension
- QSFP Available
- RoHS Compliant
- Data Center Infrastructure
- Parallel Optics
- Storage Area Network and Fiber Channel
- 40G and 100Gbps Protocols
Specifications
Parameter | Conditions |
Operation Wavelength | 1310/1550nm |
Attenuation Tolerance | ±1dB( at 2-10dB) , ±10%( at 11-20dB) |
Return Loss | 60dB(8°Polishing, SM) |
Operating Temperature | -25°C~75°C |
Attenuation | 1~20dB |
PDL | ≤0.2dB |
Maximum input optical power | 200mW |

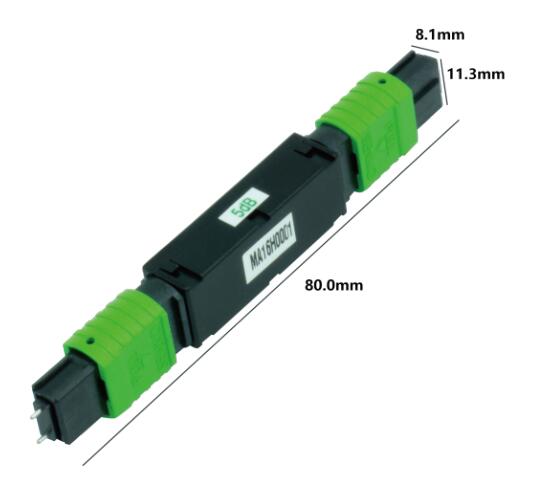

Housing Dimension | Height 8.1mm / Length 80.0mm / Width 11.3mm |
