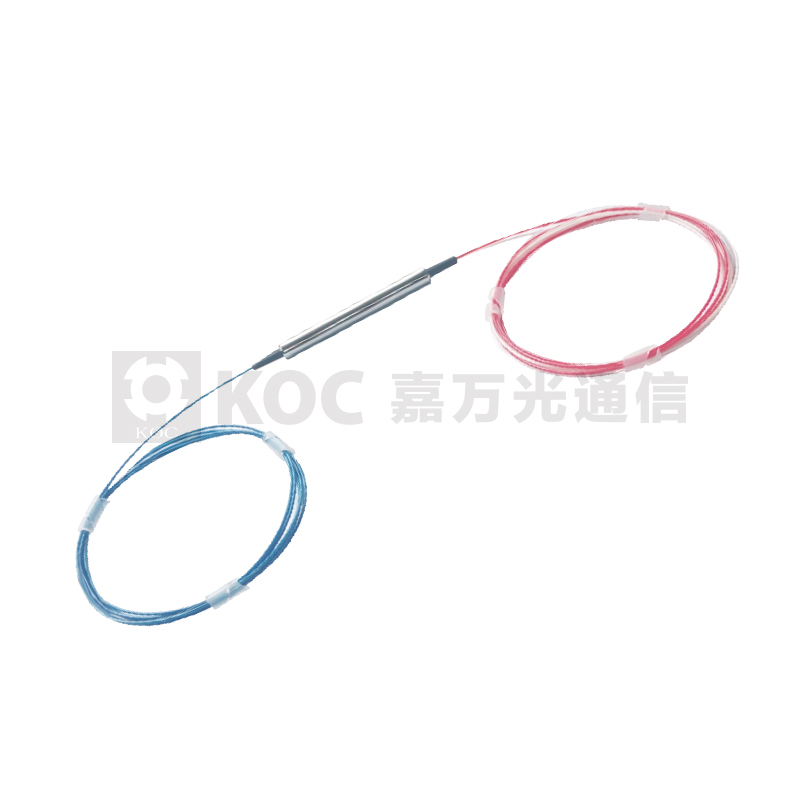

Circulator

1550nm 3port Circulator, 0.9mm loose tube, with FC/APC connector, Fiber length ≥ 0.5m, Package

Dimension :Φ5.5×L50mm

Specification Download

@Email to Sales

Features

· Low Insertion Loss and high isolation

· Low PDL & PMD

· Optical path epoxy free

· Telcordia compliant

· RoHS compliant

Applications

· EDFA

· WDM system

· Fiber optic instruments

Specifications

Parameter		Unit	Specifications
Configuration			Port 1 to Port2 to Port 3
Operating Wavelength		nm	1550±30
Insertion Loss	Typical	dB	1.00
	Maximum	dB	1.20
Channel Peak Isolation	Min	dB	50
Channel Minimum Isolation	Min	dB	40
Channel Cross Talk	Min	dB	50
Return Loss	Min	dB	50
Polarization Dependent Loss	Max	dB	0.15
Polarization Mode Dispersion	Max	ps	0.10
Power Handling	Max	mW	300
Pigtail and connector Type			0.9mm loose tube with FC/UPC connector
Fiber Type			SMF-28e
Fiber length		cm	≥50
Operating Temperature		°C	0~ 70
Storage Temperature		°C	-40 ~ 85
Package Dimension		mm	Φ5.5×L50

Order Guide

Wavelength	Port	Fiber Type	Size	Connector Type
13A:1310nm(A Grade)	3: 3 port	1: 250µm bare fiber	1: 5.5×L50(3 port)	0: Without connector
13P:1310nm(P Grade)	4: 4 port	2: 900µm tight buffer fiber	2: 5.5×L70(4 port)	1: FC/PC 2: FC/UPC
15A:1550nm(A Grade)		X: Customized		3: FC/APC 4: SC/PC
15P:1550nm(P Grade)				5: SC/UPC 6: SC/APC
				7: ST 8: LC 9: MU
				X: Customized
