GYTC8S Optical Fiber Cable

Specification Download

@Email to Sales

Features

· Central loose tubes with jelly compound inside to protect the cladding fiber.

· Corrugated steel tape laminated with plastic at both sides bonding to PE sheath.

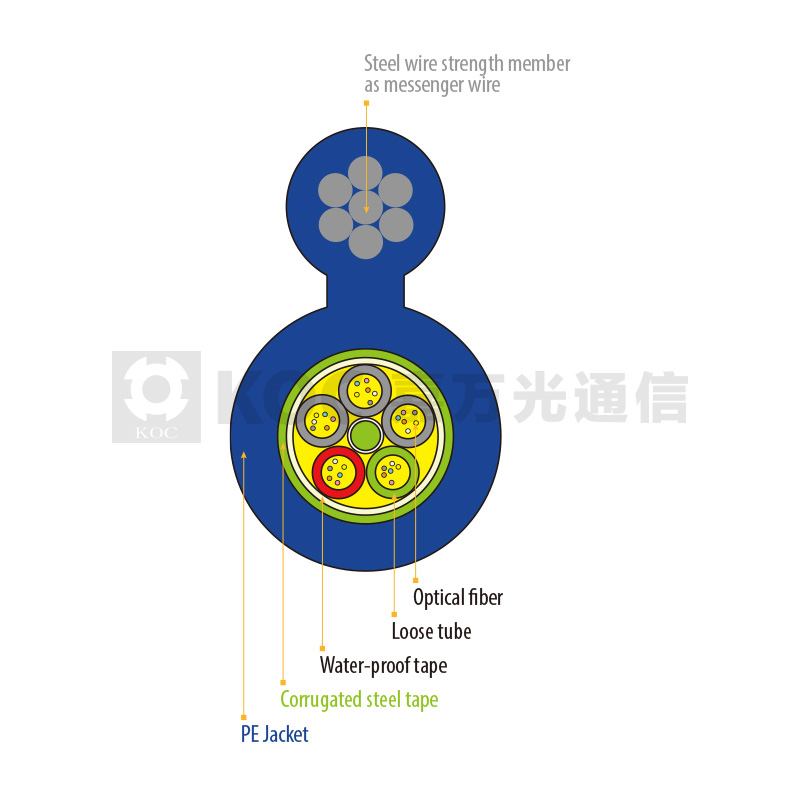

· The cross-section in fig8 shape.

· Incorporates stranded steel messenger wire.

Applications Outdoor communication, Long distance and loca area network(LAN) communication.
Laying method Self-support aerial installation.
Properties Messenger wire as self-supporting part, high tensile.
Temperature range -20°C - +70°C

Specifications

Outer Diameter (mm)	Nominal Weight (kg/km)	Max. Tensile(N) Long Term Short Term		Min.bend Radius(mm) Dynamic Static		Max. Crush Resistance (N/100mm²)
GYTC8S Optical Fiber Cable
10.5±0.3mm x 17.8±0.3mm	195	2500	4800	20H	10H	1000
