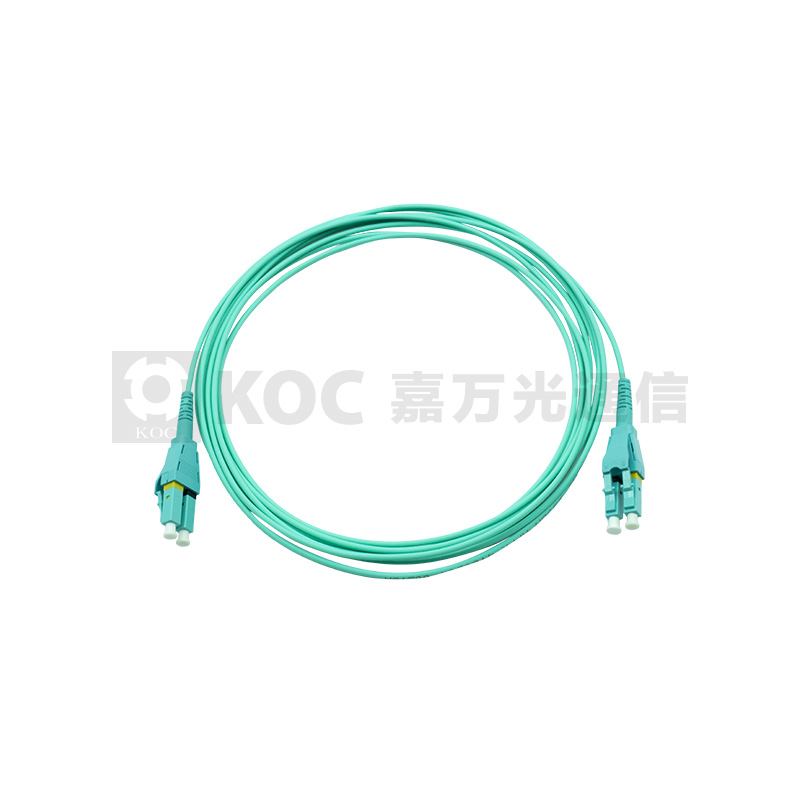

Switchable Duplex LC Uniboot Fiber Optic Patch Cord

Duplex Uniboot connector patch cord is designed by Bangun. This highly flexible duplex cable reduces cabling congestion and improves patch cord management and installation, it improves cabling space.And fiber polarity A -> A or A -> B can be switched by installer.

Specification Download

@Email to Sales

Features

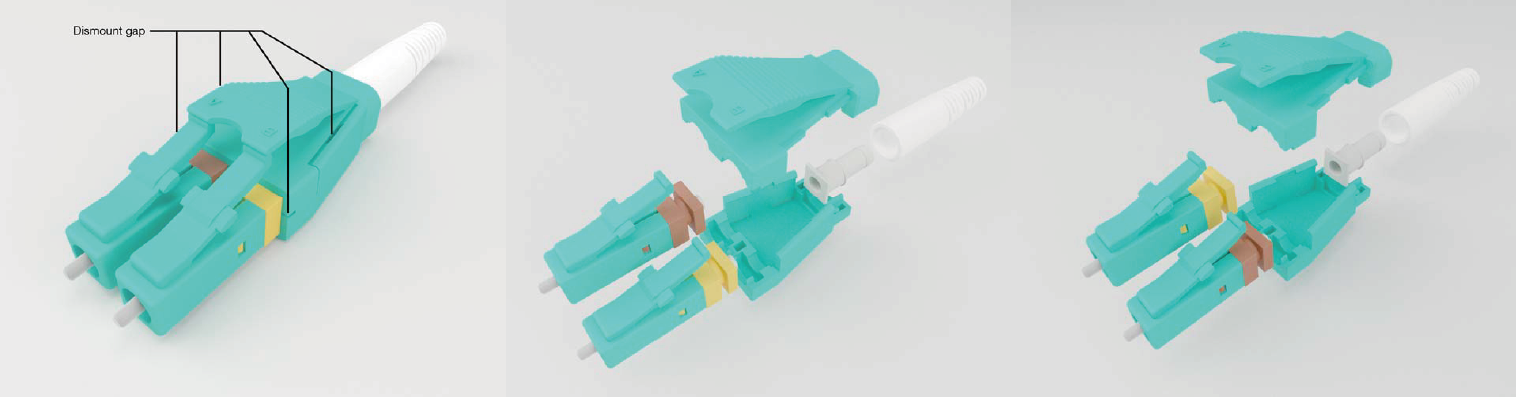

· Fiber polarity A -> A or A -> B can be switched by installer

· Thin round cable

· Duplex connectors with single boot which is highly integrated and easy for installation

· Standard compatible, simplex / duplex LC connectors.

· High performance, 100% tested

· Fiber type: OS2/OM2/OM3/OM4/OM5

· Customized patch cord length

· Two notches on the connectors for easy for installation and uninstallation

· Mini and flexible boot is available. Boot can be turned to any angle

· Quick deployment reduces installation time

· Fast upgrading supports parallel transmission system

· Outer jacket material, PVC, LSZH OFNR,OFNP and other materials selection

Specifications

Item	Single mode	Multimode
Insertion Loss	≤0.30 dB	≤0.30 dB
Return Loss	≥50 dB (PC) , ≥60 dB (APC)	/
Durability	<0.20 dB typical change, 1000 matings	/
Operating Temperature	-40 to +85°C	-40 to +85°C
