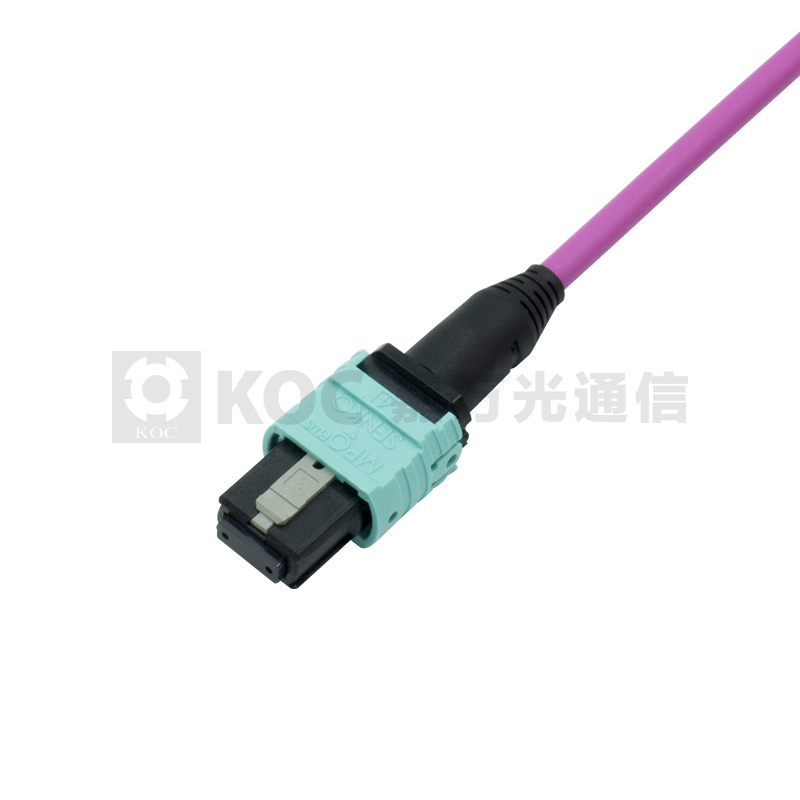

MPO Polarity Changeable Patch-Cord

The MPO Switchable Connector is a unique design that allows the use ofround style. The housing of the MPO Switchable Connector can be Polarity change in the field without any tool, and simple gender change without taking off the housing. This connector allows the fiber polarity to be switched at the time of cable assembly installation without having to reterminate the connectors. This design is commonly used in data centers.

Specification Download

@Email to Sales

Features

· Low insertion loss and back reflection loss

· Polarity chang in the field without any tool

· Simple gender change without taking off the housing

· Good exchangeability

· Good Durability

· High temperature stability

· Various boots types available

· Standard: Telcordia GR-1435-CORE compliant

Specifications

Item	Single mode(PC)	Multimode(PC)
	Low loss	Low loss
Insertion Loss	≤0.35 dB	≤0.35 dB
	typical≤0.2 dB	typical≤0.2 dB
Return Loss	≥50 dB	≥30 dB
Repeatability	≤0.2dB
Durability	≤0.2 dB typical change, 500 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to +85°C

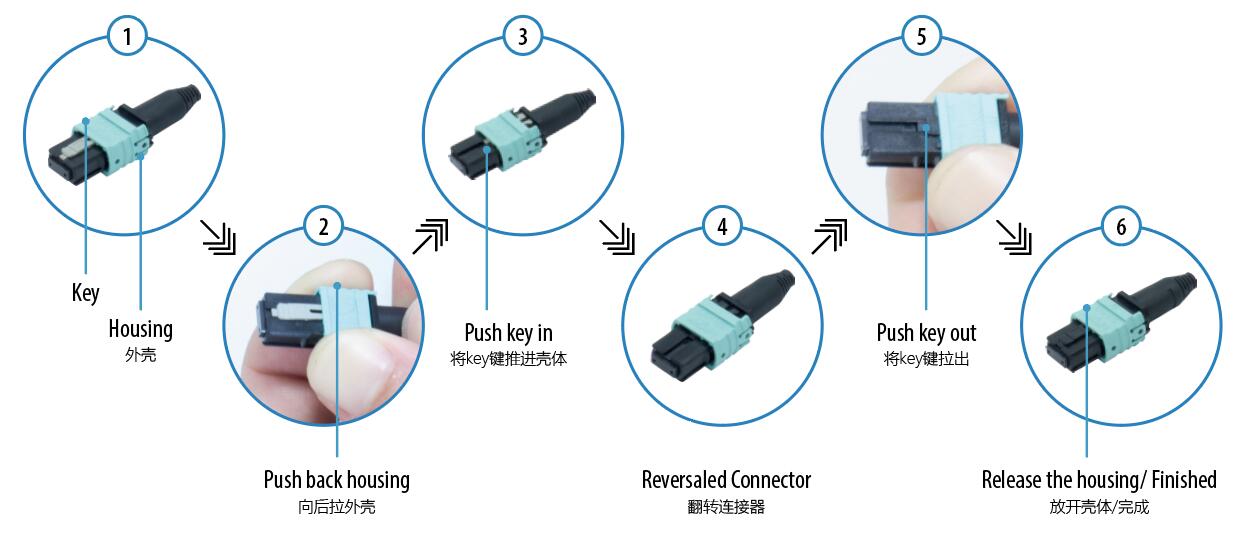

Switch Polarity (Sample: Aqua housing/3.0mm short mini boot)
