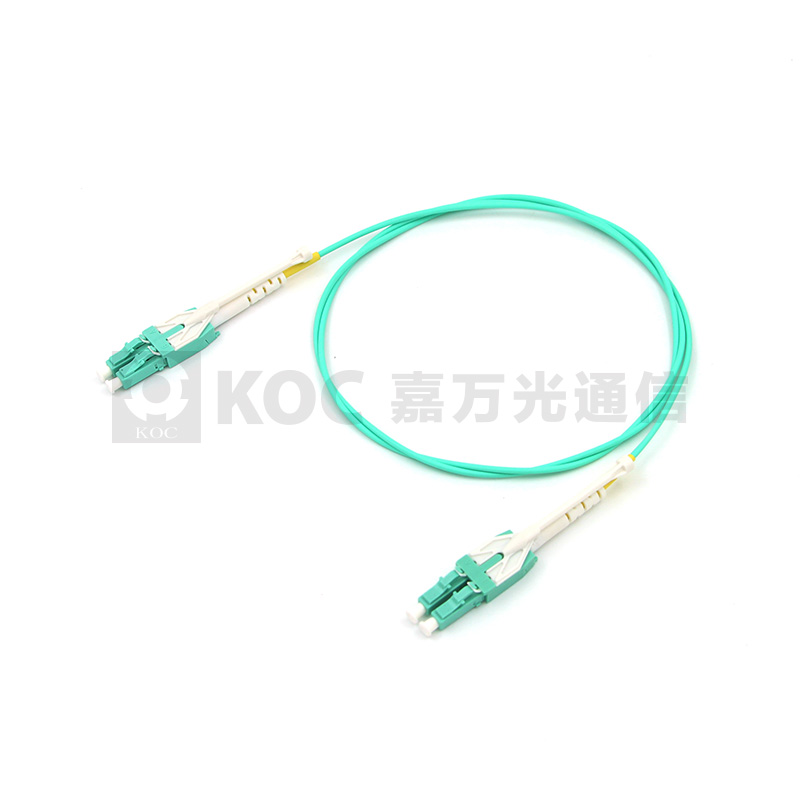

High Density Pull tap LC Duplex Uni-boot Patch Cord

This High Density Pull tap LC Duplex Uni-boot Patch Cord is available for high-density fiber patch panels. The highly flexible duplex cable reduces cable congestion and can be plug in and out of the panel easily and quickly so that it improves management and installation convenience.

Specification Download

@Email to Sales

Features

· Thin round cable

· Duplex LC ubiboot with pull tap, easy for plug in and out among panels

· Standard compatible, duplex LC connectors;

· High transmission, 100% tested under IEC standards

· Quick deployment reduces installation time

· Fast upgrading supports parallel transmission system

· Outer jacket material, PVC, LSZH and other materials selection

· Fiber type: OS2/OM2/OM3/OM4/OM5

· Customized patch cord length

Specifications

Item	Single mode	Multimode
Insertion Loss	≤0.30 dB	≤0.30 dB
Return Loss	≥50 dB (PC) , ≥60 dB (APC)	≥30 dB (PC)
Durability	<0.20 dB typical change, 1000 matings
Operating Temperature	-20 to +70°C	-20 to +70°C
