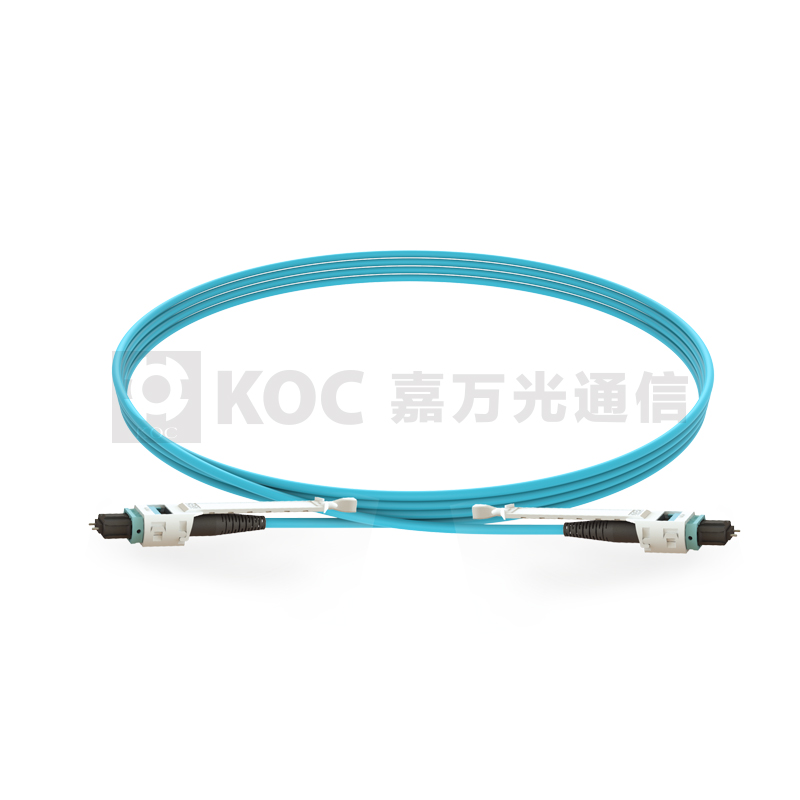

Pull tap MPO Round Trunk Cable Patch Cord

The pull tap MPO serries patchcords are easy for plug in and out among panels. Pull tap MPO fiber optical patchcord which are highly demanded in fiber optical communication systems with high density optical fiber. Bangun's pull tap MPO product comes in many types .The connector type and the lengh of fiber patchcord can be decided by customers. Our product conforms to Telcordia GR-1435.

Specification Download

@Email to Sales

Features

• Low insertion loss and back reflection loss

• Good exchangeability

• Good Durability

• High temperature stability

• MPO connector with pull tap, easy for plug in and out among panels

• Low loss or standard loss are available

• Standard: Telcordia GR-1435-CORE compliant

Applications

• CATV , and Multimedia

• Telecommunication networks

• Active device interface

• Telecommunication networks

• Gigabit Ethernet

• Data processing networks

• Interconnection for O/E modules

• Optical switch interframe connection

• Asynchronous Transmission Mode (ATM)

Item	Single mode		Multimode
	Standard	Low loss	Standard	Low loss
Insertion Loss	≤0.75dB, typical≤0.5dB	≤0.35dB, typical≤0.2dB	≤0.75dB, typical≤0.5dB	≤0.35dB, typical≤0.2dB
Return Loss	≥60dB(APC)		≥30dB(PC)
Repeatability	≤0.2
Durability	≤0.2dB typical change, 500 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40°C ~ 85°C

Availability

MT Ferrule Type	Fiber Count	Gender/Pin	Polarity	Cable Type	Fiber Type	Length
SM Stangard loss	8	Male/Female	Type A	LSZH/PVC/Riser/Plenum	G652D/G657A1/G657A2/ G657B2/G657B3/OM1/ OM2/OM3/OM4/OM5	Customized
SM Low loss	12		Type B
MM Stangard loss	16		Type C
MM Low loss	24
