- Ferrule hole V-groove alignment ensure the fiber core alignment error <0.5um. This will reduce the connect loss.
- The V-groove has the advantage than V-groove when different fiber diameter are used. This will reduce core offset between customer and stuff fiber.
- Outdoor optical fiber temporary connection
- Flexible fiber connect, high pulling resistance
FEATURES
- Patent fiber alignment technology
- High performance, high reliability
- No Polish, no electricity needed
- Quick installation, easy for operation
- High one-time assembly success rate
APPLICATIONS

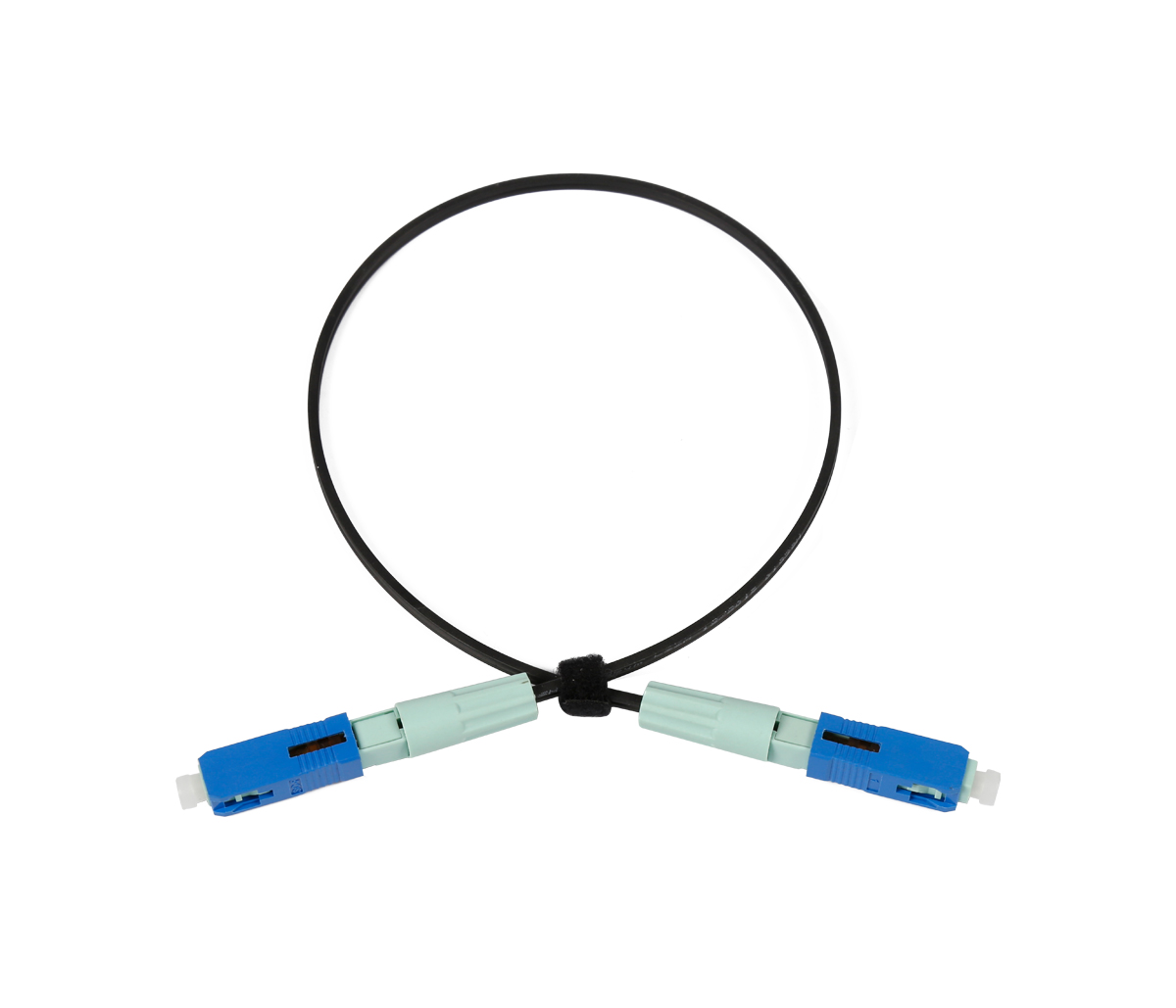

- For FTTH Drop Cable field termination
- For emergency fiber path repair
- FTTH, LAN and other fiber optic system

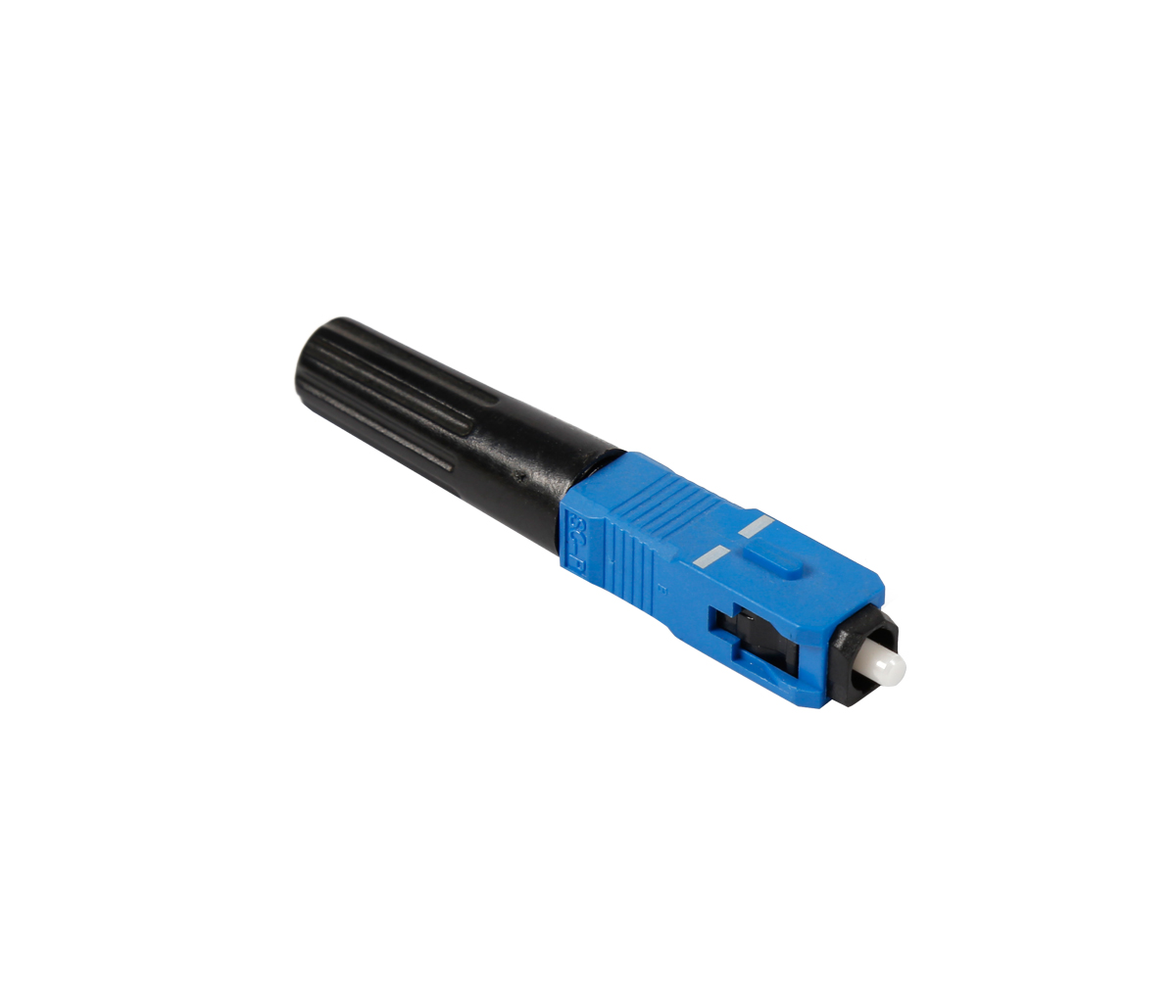

- SC type available
Specification
Item | Parameter |
Insertion Loss | Average≤0.3dB, Max≤0.5dB |
Return Loss | UPC: ≥40dB, APC: ≥55dB |
One-time Assembly Rate | ≥97% |
Assembly Repeatability | ≥5 times |
Life time | ≥10 years |
Average Assembly Time | 3 minutes |
Tensile Resistance | ≥30N |
Operation Temperature | -40ºC~+85ºC |
