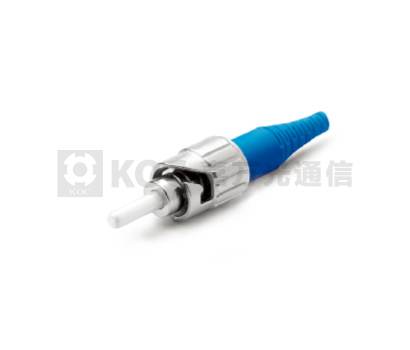

2.0mm ST Connector

2.0mm ST connectors usually are used for patchcord. And the connectors have many types can be chosed,for example: APC or UPC ferrule、black or green boot ...

Specification Download

@Email to Sales

Features

• High precision alignment

•Metal Body

• Good insertion loss and back reflection loss

•ROHS compliant

•TIA604-2&IEC61754-2 compliant

Application

• Instrumentation

• Data processing networks

• Premise installations

• Local Area Networks (LANs)

Standards

All components of/and the final product are designed and tested to conform the requirements of IEC 60874, Bellcore/Telcordia GR-326, EIA/TIA 604-2, IEC61754-2,EIA/TIA 568, IEC61300-2,IEC61300-3,IEC61753-1, EIA/TIA455.

	Single mode	Multimode
Insertion Loss	≤0.30dB	≤0.30dB
Return Loss	PC≥50 dB,APC≥60 dB	PC≥30 dB
Durability	<0.20 dB typical change, 1000 matings	<0.20 dB typical change, 1000 matings
Operating Temperature	-40 to + 85°C	-40 to + 85°C
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	MM:127μm, Concentricity: ≤4μm
	125.3+1/-0μm, Concentricity: ≤1.0μm
	125.5+1/-0μm, Concentricity: ≤1.0μm

Availability

• The connector can be supplied as a pre-assembled connector or as connector kits.

• Connector kits without ferrule are available.

• APC or PC ferrule are available.

Ferrule Style	Boot Type	Boot Colors
PC	2.0mm round 40mm length boot	Black
APC		Red
		Aqua
		Beige
		Yellow
